Specifications：
- Brand name：GEPRC
- Item name：Mark 3-H5
- Frame type：H type
- Propeller : 5inch
- Motor to motor：225mm
- Size：159*159mm
- Weight：102g
- Arms plate : 4mm
- Bottom plate：3mm
- Side plate : 3mm
- Top plate : 1.5mm
- Reinforce plate : 1.5mm
Recommended：
- Flight Controller：RF/Kiss/F4/F3
- Motor： 2205/2206/2207/2305/2306
- ESC：20A-50A
- Propeller：5inch~6inch
- Lipo: 3S 1300mAh ~ 6S 1500mAh
Features:
- H type Frame
- Beautiful appearance design，durable in crashing
- Hood engine room design，Quick maintenance and replacement of equipment
- Quick swapping of arms
- Ample space for electronic installation
- With 25 ° Camera mount
- Center Stack Mount 30.5×30.5mm，It is also equipped with a 20x20mm flight controller plate
- High quality 3K twill carbon fiber plate, high precision CNC processing,7075 aluminum alloy
- YFS screw, 12.9 grade strength, non-slip teeth, anti-rust

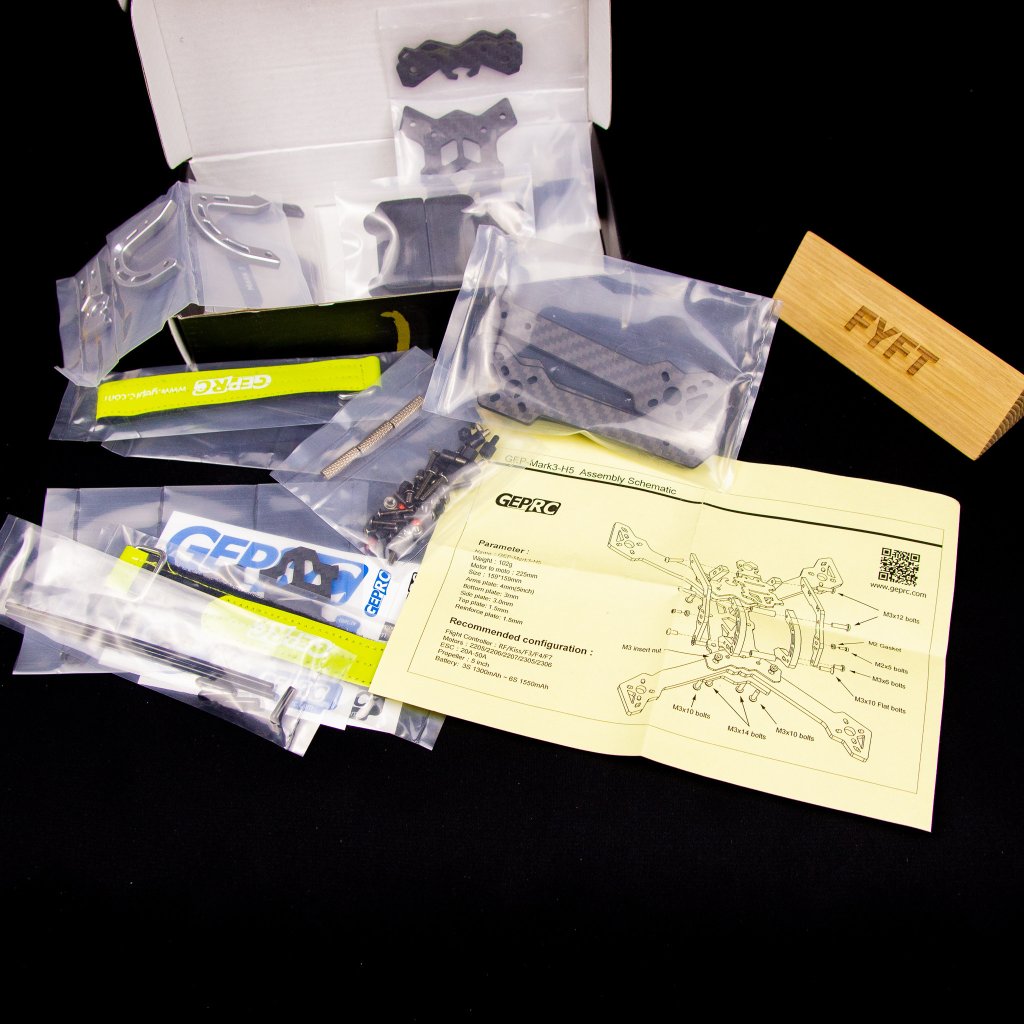

Includes:
- 4 x 4mm 5inch arms plate
- 1 x 3mm bottom plate
- 2 x 3mm Side plate
- 1 x 1.5mm top plate
- 1 x 1.5mm reinforce plate
- 1 x 1mm 20*20mm flight controller plate
- 1 x 1mm receiver plate
- 1 x 1.5mm Lipo protection plate
- 1 x 7075 Aluminum Camera Protector
- 1 x Camera No-Slip Silicone Pad
- 1 x Lipo foam pad
- 3 x M3*18.5mm Aluminum alloy standoff Titanium color
- 4 x M3*14 YFS Button Screw
- 4 x M3*12 YFS Button Screw
- 4 x M3*10 YFS Button Screw
- 2 x M3*6 YFS Button Screw
- 4 x M3*5 YFS Button Screw
- 2 x M3*10 Flat Screw
- 3 x M2*5 Cap Screw
- 4 x M3 insert nut
- 4 x FC Rubber damping pad
- 3 x M2 Gasket red
- 4 x M3 Nylon nut
- 6 x M3*5+6 Nylon standoff
- 2 x 20*220 GEPRC Lipo strap
- 1 x 2.4g Antenna fixed tube
