MARK4 HD7 - rám dronu (GePRC)

Detailní popis produktu

Pro koho?

• Pro piloty, kteří si chtějí postavit většího freestyle drona.

Proč?

• Místa je tu dostatek, připojit digitál se přímo nabízí, drone je na to uzpůsoben a vše důležité je snadno dostupné.
• Odolné odlehčené karbonové díly jsou dostatečně pevné a odolné, a ramena jsou samostatně vyměnitelné.

Features：

• The perfect match DJI FPV Air Unit

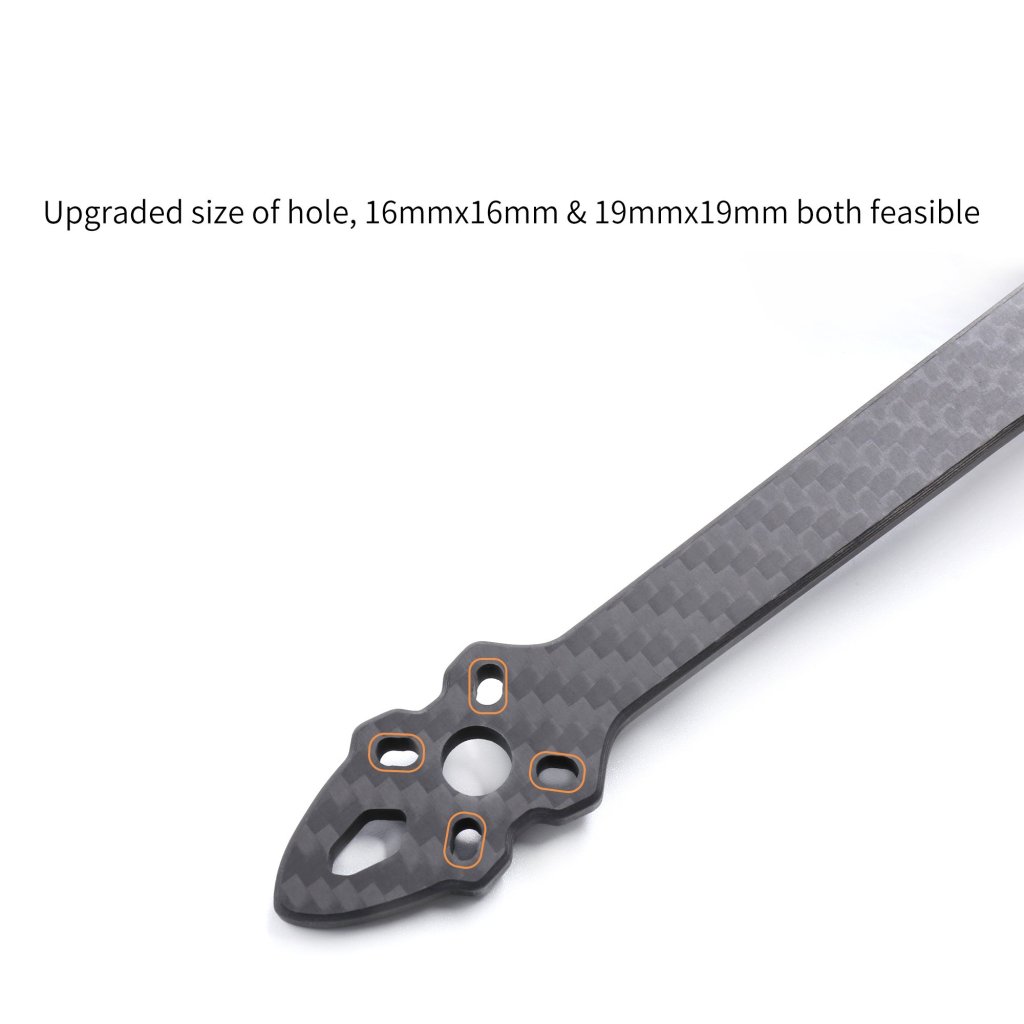

• Upgraded size of hole, 16mmx16mm & 19mmx19mm both feasible
• 3D printing parts are fixed and protected
• Full 3K Carbon Fiber Frame
• Super lightweight Freestyle frame
• Beautiful appearance design，durable in crashing
• Quick maintenance Arms and replacement of equipment
• 25mm standoffs for better height and CG relation,Ample space for electronic installation
• ALU6061 Srandoff New , Strengthen the hardness
• There are 30.5*30.5mm and 20*20mm flight control holes , Stack can fit in the center or the rear.
• High quality 3K twill carbon fiber plate, high precision CNC processing
• YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware

Specifications：

• Item name：GEP-Mark4 HD7 Frame
• Frame type：H-TYPE
• Propeller : 7inch
• Motor to motor：295mm
• Size：193*223mm
• Mounting Holes: 30.5*30.5mm/20*20mm
• Weight：140g
• Arms plate : 5mm
• Side plate : 2.5mm
• Top plate : 2.5mm
• Bottom plate : 2.5mm
• Protect plate : 2mm

Recommended：

• Flight Controller：RF/Kiss/F3/F4/F7
• Motor：2205/2206/2207/2207.5/2305/2306/2306.5
• ESC：30A-50A
• Propeller：7inch
• Lipo: 6S 2200mAh
• FPV :DJI FPV Air Unit

Include：

• 4 x 5mm 7inch Arms
• 2 x 2.5mm side plate
• 1 x 2.5mm top plate
• 1 x 2.5mm Bottom plate
• 2 x 2mm Bumpers plate
• 2 x 2mm Reinforce plate
• 1 x Lipo silicone pad
• 1x DJI FPV Air Unit fixed
• 1x Antenna Mount
• 1x RX Antenna Moun
